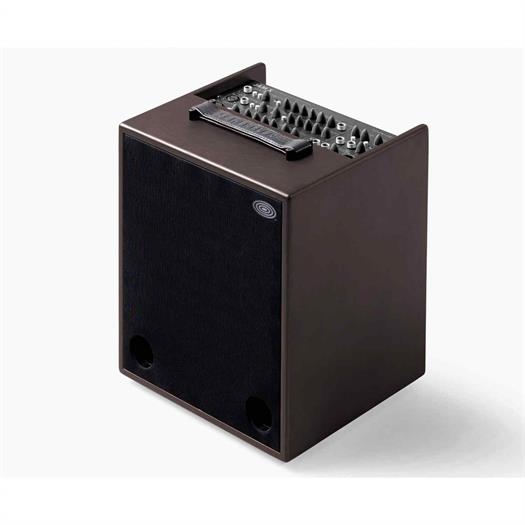

Schertler JAM-X acoustic amplifier SCHERTLER

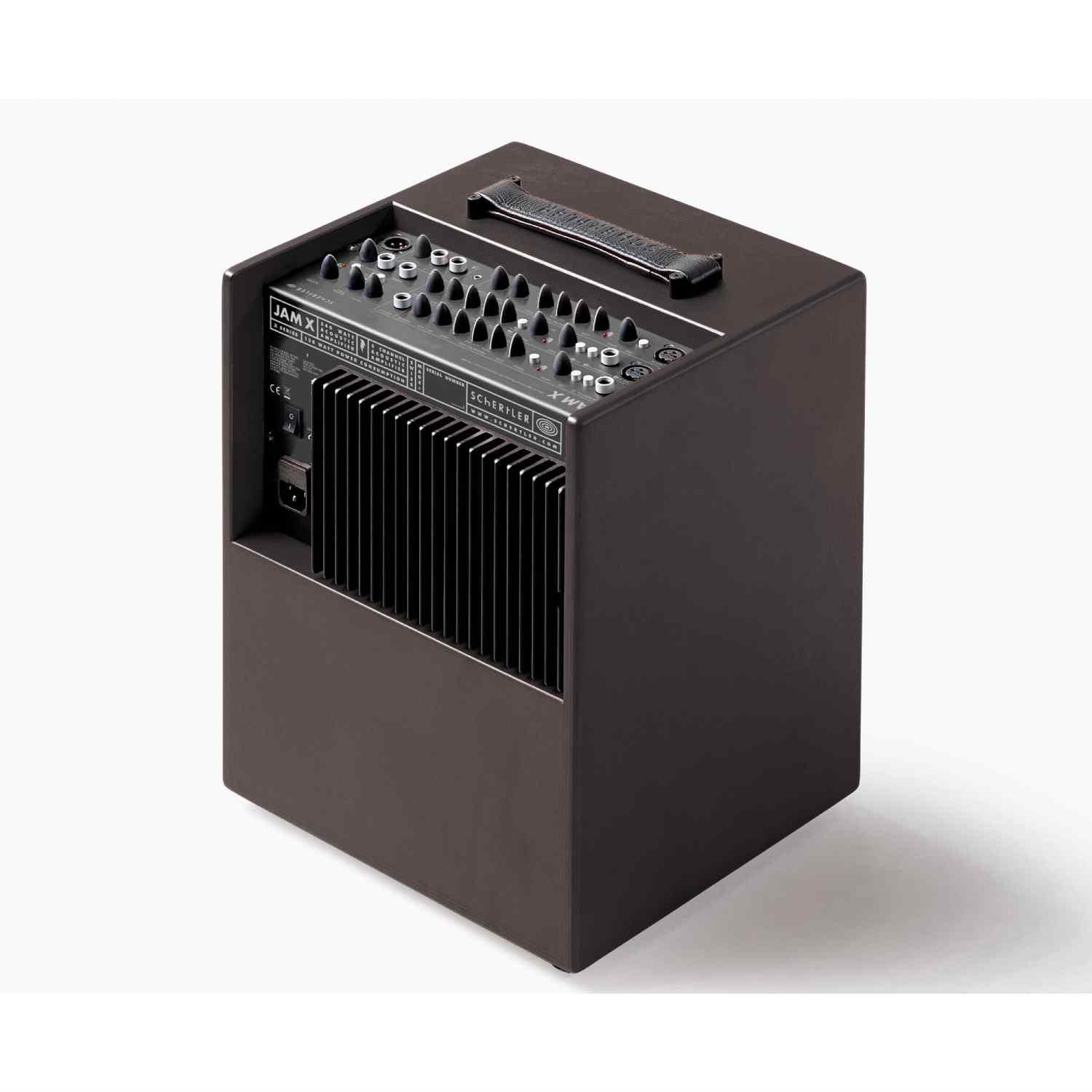

Schertler JAM-X acoustic amplifier SCHERTLER BACK

Product number: 200843 - EAN: 7640165618509

Schertler - JAM X-A acoustic amplifier

The SCHERTLER JAM X is a premium 5-channel amplifier delivering 230W of bi-amplified analog power with an 8” woofer and 1” dome tweeter. It offers clear, natural sound and a wide frequency range - perfect for acoustic instruments and vocals in both studio and live settings.

Price at 1 Pcs. - perPcs.:

17.228,00

Pcs.

Amount

Buy

Not in stock. (0 Pcs.) - Shipping within 3-5 days

JAM X represents the state of the art in Swiss amplifier design, reflecting all the needs of the user. Offering a significantly improved power amp and speaker section, together with a crossover filter network, limiter and gain, this flagship 5-channel amp provides 230W (117dB SPL) of bi-amplified analog power. JAM X is equipped with a 1” dome tweeter and 8” woofer. It is designed with an optimized 2-way bass reflex construction.

JAM X is ideal for those seeking no-compromise acoustic instrument amplification in both live performance and studio situations. It delivers the wide low range typically needed for vocals or acoustic guitars, along with clarity and transparency. The five inputs can accommodate a variety of different setups, including an effect loop via the Aux Out.

SCHERTLER amps feature a high-end Class-A preamp with no integrated circuits and No Negative Feedback.

Technical specifications:
Weight   12.5 kg
Dimensions (LxDxH)   32.4 x 29.7 x 38 cm
Frequency Response (@ +/-3dB)   40 to 20 kHz
Sensitivity (1W/1m) @1 kHz   95 dB
Power   240 W pure analog power amp
SPL Max   117 dB
Speakers   1” dome tweeter, 8” woofer
Construction   12 mm birch BB laminated
System - Format   Two way, bi-amplified - Bass reflex
Mic In connector   XLR
Mic In sensitivity   -52 dB
Mic In impedance   4.7 kΩ
Instrument In connector   1/4" jack unbalanced
Instrument In sensitivity   -47 dB
Instrument In impedance   820 kΩ
Stereo In connector   1/8" jack stereo
Stereo In sensitivity   -10 dBu
Stereo In impedance   40 kΩ
Insert   On master
Line Out connector   1/4" jack
Line Out level   0 dBu
Line Out impedance   200 Ω
DI Out connector   XLR
DI Out level   -∞ to +6 dBu
DI Out impedance   180 Ω
Aux Out connector   1/4" jack unbalanced
Aux Out level   0 dBu
Aux Out impedance   200 Ω
Phones connector   n.a.
Phones level   n.a.
Phantom Power (nominal)   24 VDC
Stat Power (10 VDC)   Yes
Effect   Spring-type digital reverb with decay
Preamp   Class-A, no negative feedback, no integrated circuits
Footswitch   n.a.
Stand mounting   Flange mount ø 36 mm, h=102 mm

Show without VAT
