Product number: 200869 - EAN: 7640165618615

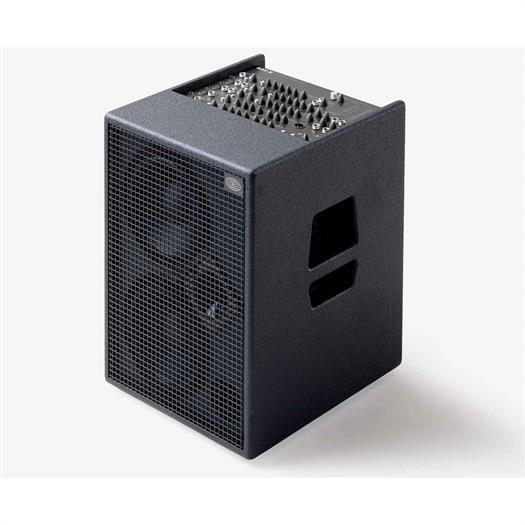

Schertler - ROY-X-A acoustic amplifier

ROY X is a 7-channel Swiss amplifier with 450 W bi-amplified power, featuring a 1” tweeter and two 8” woofers. Ideal for soloists or small groups, it offers flexible inputs, built-in mixing, reverb, digital effects, and headphone monitoring. Available in wood or anthracite, with SCHERTLER’s Class-A preamp and no negative feedback.

Price at 1 Pcs. - perPcs.:

25.097,00 22.588,00

Pcs.

Amount

Buy

In stock. (1 Pcs.) - Shipping within 4 to 7 days

ROY X represents the state of the art in Swiss amplifier design, reflecting all the needs of the user. Offering a significantly improved power amp and speaker section, together with a crossover filter network, limiter and gain, this versatile 7-channel combo amplification system offers 450W (124dB SPL) of bi-amplified power. Equipped with a 1” dome tweeter and two 8” woofers, it is designed with a 2-way bass reflex construction.

ROY X is highly effective as a stand-alone portable system for soloists or small groups. The system can accommodate various mic/instrument combinations and offers a comprehensive mixing facility for easy on-stage setup. ROY X’s Master section includes both a spring-like reverb with decay and a digital multi-effect (on a separate buss). A headphone preamp provides a handy monitoring facility.

ROY X is available in a choice of wood or anthracite finishes.

SCHERTLER amps feature a high-end Class-A preamp with no integrated circuits and No Negative Feedback.

Weight: 22.2 kg
Dimensions (LxDxH): 35.7 x 41.5 x 51 cm
Frequency Response (@ +/-3dB): 40 to 20 kHz
Sensitivity (1W/1m) @1 kHz: 95 dB
Power: 450 W Class-D power amp
SPL Max: 124 dB
Speakers: 1” compression driver, 2x 8” woofer
Construction: 15 mm birch BB laminated
System - Format: Two way, bi-amplified - Bass reflex
Mic In connector: XLR
Mic In sensitivity: -52 dB
Mic In impedance: 9.4 kΩ
Instrument In connector: 1/4" jack unbalanced
Instrument In sensitivity: -47 dB
Instrument In impedance: 820 kΩ
Stereo In connector: 1/8" jack stereo
Stereo In sensitivity: -10 dBu
Stereo In impedance: 44 kΩ
Insert: On master + channels 1-4
Line Out connector: 1/4" jack
Line Out level: 0 dBu
Line Out impedance: 200 Ω
DI Out connector: XLR
DI Out level: -∞ to +6 dBu
DI Out impedance: 180 Ω
Aux Out connector: 1/4" jack unbalanced
Aux Out level: -∞ to 0 dBu
Aux Out impedance: 180 Ω
Phones connector: 1/4" jack stereo
Phones level: +25 dBu
Phantom Power (nominal): 48 VDC
Stat Power (10 VDC): Yes
Effect: Spring type digital reverb with decay + parallel multieffect with 16 presets
Preamp: Class-A, no negative feedback, no integrated circuits
Footswitch: For multieffect and digital reverb
Stand mounting: n.a.
Available versions: Dark wood and anthracite
