Schertler - Unico X-W Wood - Acoustic amplifier front

Product number: 200868 - EAN: 7640165618608

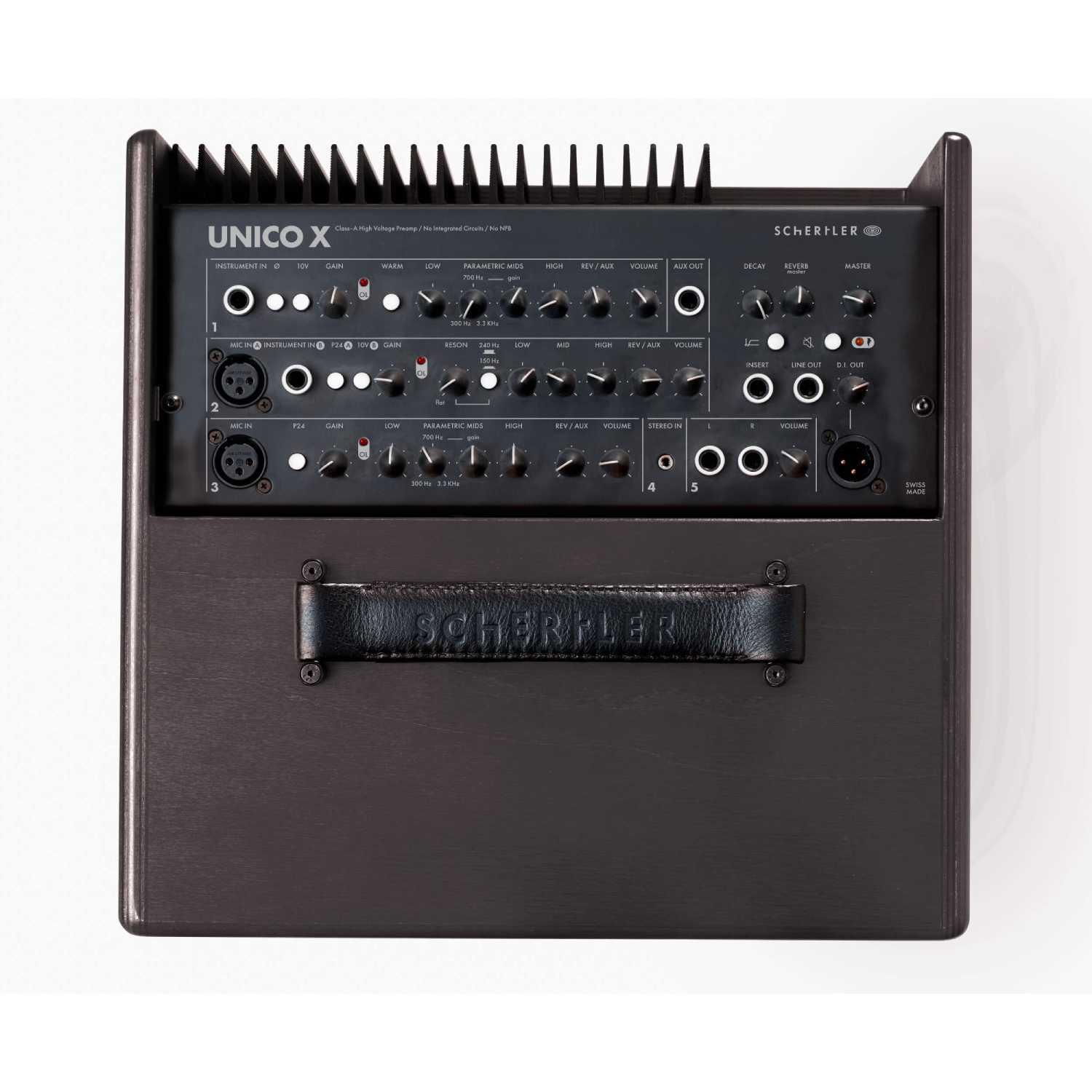

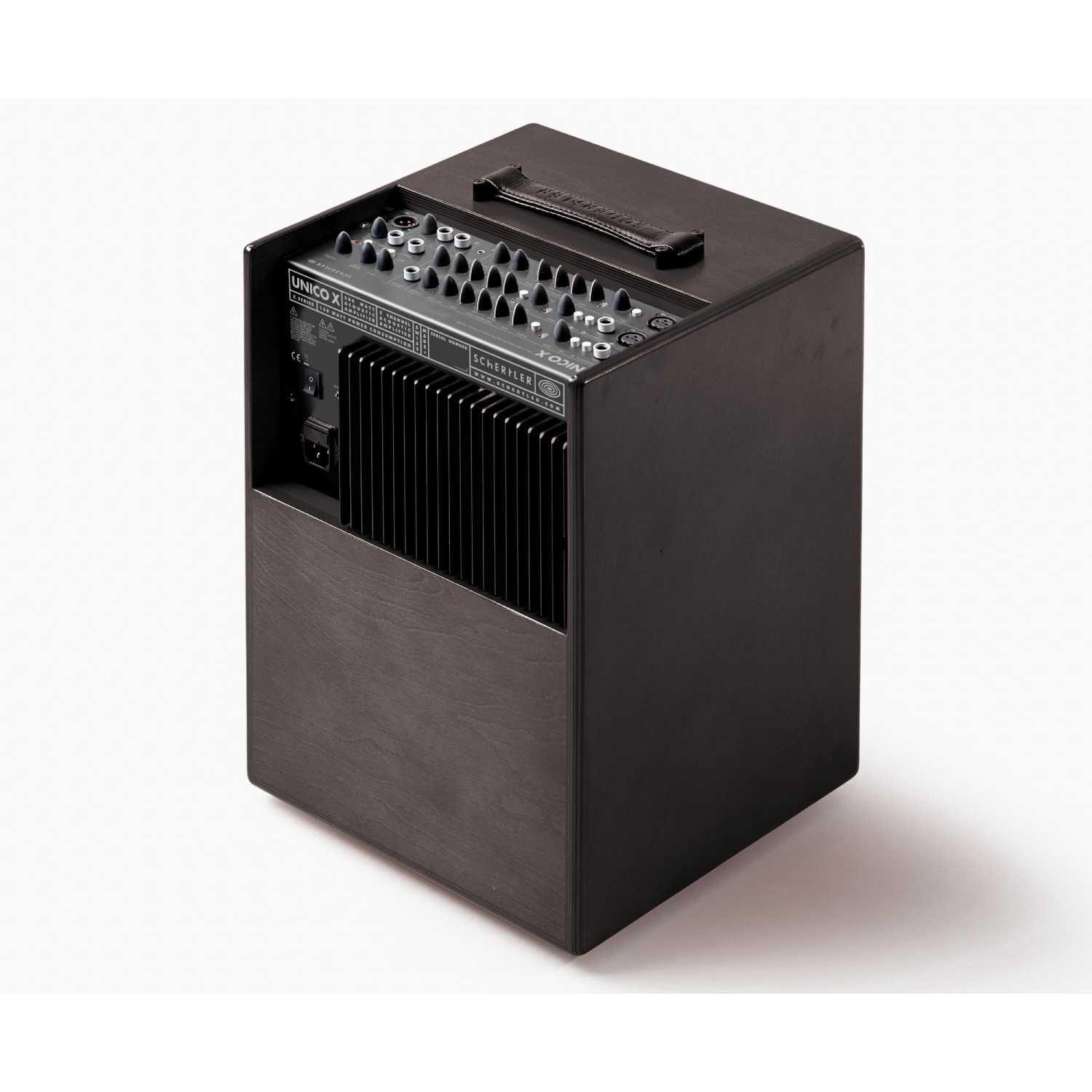

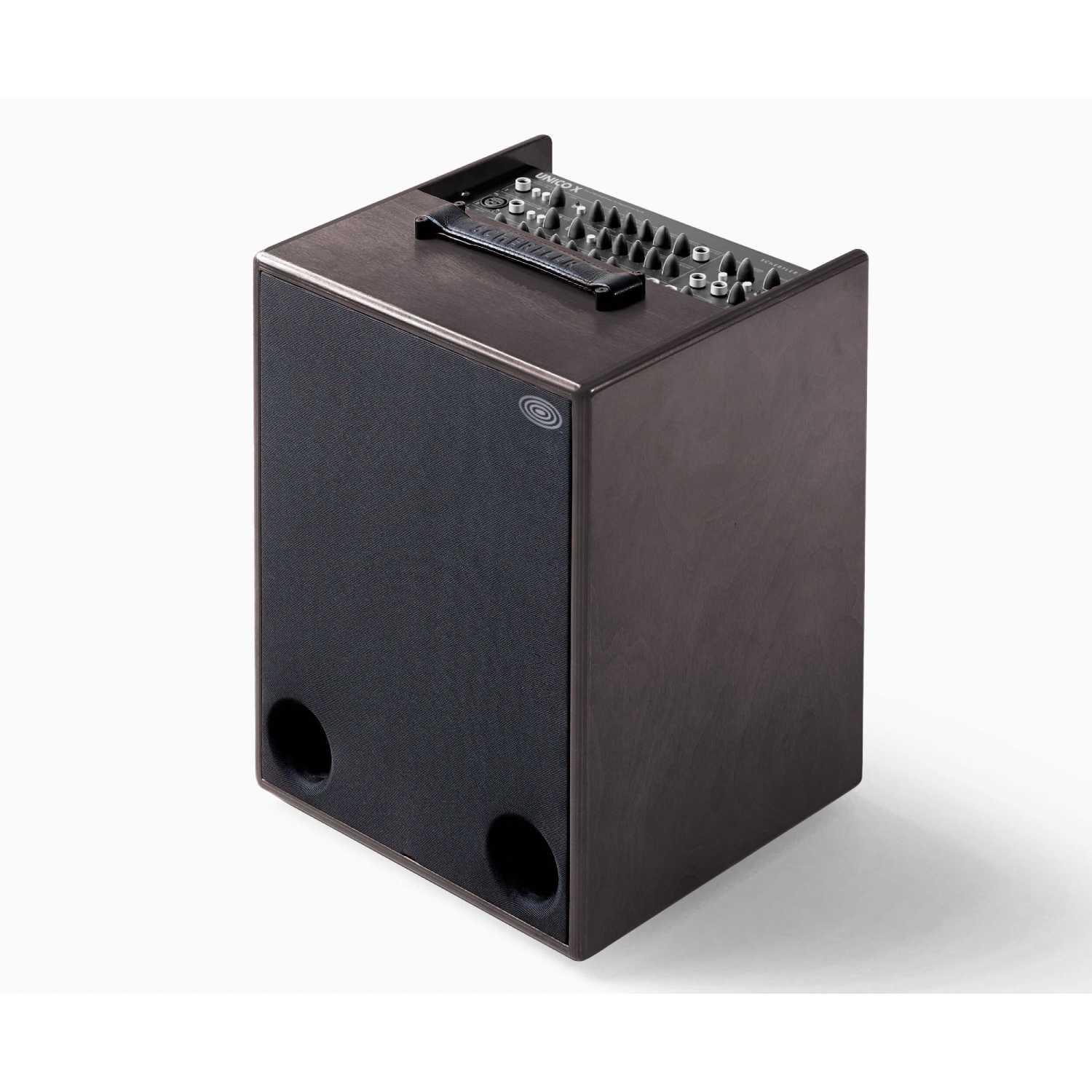

Schertler - Unico X-W Wood - Acoustic amplifier

UNICO X is a 5-channel acoustic combo amplifier with 280W of bi-amplified analog power. It delivers high headroom and exceptional clarity for live and studio use. Dark wood finish

Price at 1 Pcs. - perPcs.:

11.126,00

Pcs.

Amount

Buy

Not in stock.

Send me an e-mail when the item is in stock again

(0 Pcs.) - Shipping within 20-30 days

UNICO X represents the state of the art in Swiss amplifier design, reflecting all the needs of the user. Offering a significantly improved power amp and speaker section, together with a crossover filter network, limiter and gain, this impressive 5-channel combo amp provides 280W (123dB SPL) of bi-amplified analog power. UNICO X is equipped with a 1â€ dome tweeter and 10â€ woofer. It is designed with an optimized 2-way bass reflex construction.

UNICO X is ideal for those seeking no-compromise acoustic instrument amplification in both live performance and studio situations. It delivers the wide low range typically needed for vocals or acoustic guitars, along with clarity and transparency. The five inputs can accommodate a variety of different setups, including an effect loop via the Aux Out.

UNICO X is available in a choice of wood or anthracite finishes.

SCHERTLER amps feature a high-end Class-A preamp with no integrated circuits and No Negative Feedback.

Weight              16.8 kg
Dimensions (LxDxH)               34.2 x 32.6 x 43.8 cm
Frequency Response (@ +/-3dB)                   40 to 20 kHz
Sensitivity (1W/1m) @1 kHz 98 dB
Power                280 W pure analog power amp
SPL Max           123 dB
Speakers         1” dome tweeter, 10” woofer
Construction 12 mm birch BB laminated
System - Format                       Two way, bi-amplified - Bass reflex
Mic In connector                      XLR
Mic In sensitivity                      -52 dB
Mic In impedance                    4.7 kΩ
Instrument In connector       1/4" jack unbalanced
Instrument In sensitivity       -47 dB
Instrument In impedance    820 kΩ
Stereo In connector                1/8" jack stereo
Stereo In sensitivity                -10 dBu
Stereo In impedance              40 kΩ
Insert                 On master
Line Out connector                 1/4" jack
Line Out level 0 dBu
Line Out impedance               200 Ω
DI Out connector                      XLR
DI Out level    -∞ to +6 dBu
DI Out impedance                   180 Ω
Aux Out connector                  1/4" jack unbalanced
Aux Out level 0 dBu
Aux Out impedance                200 Ω
Phones connector                   n.a.
Phones level n.a.
Phantom Power (nominal)    24 VDC
Stat Power (10 VDC)                Yes
Effect                Spring-type digital reverb with decay
Preamp            Class-A, no negative feedback, no integrated circuits
Footswitch     n.a.
Stand mounting                        Flange mount ø 36 mm, h=102 mm
Available versions                   Dark wood and anthracite
